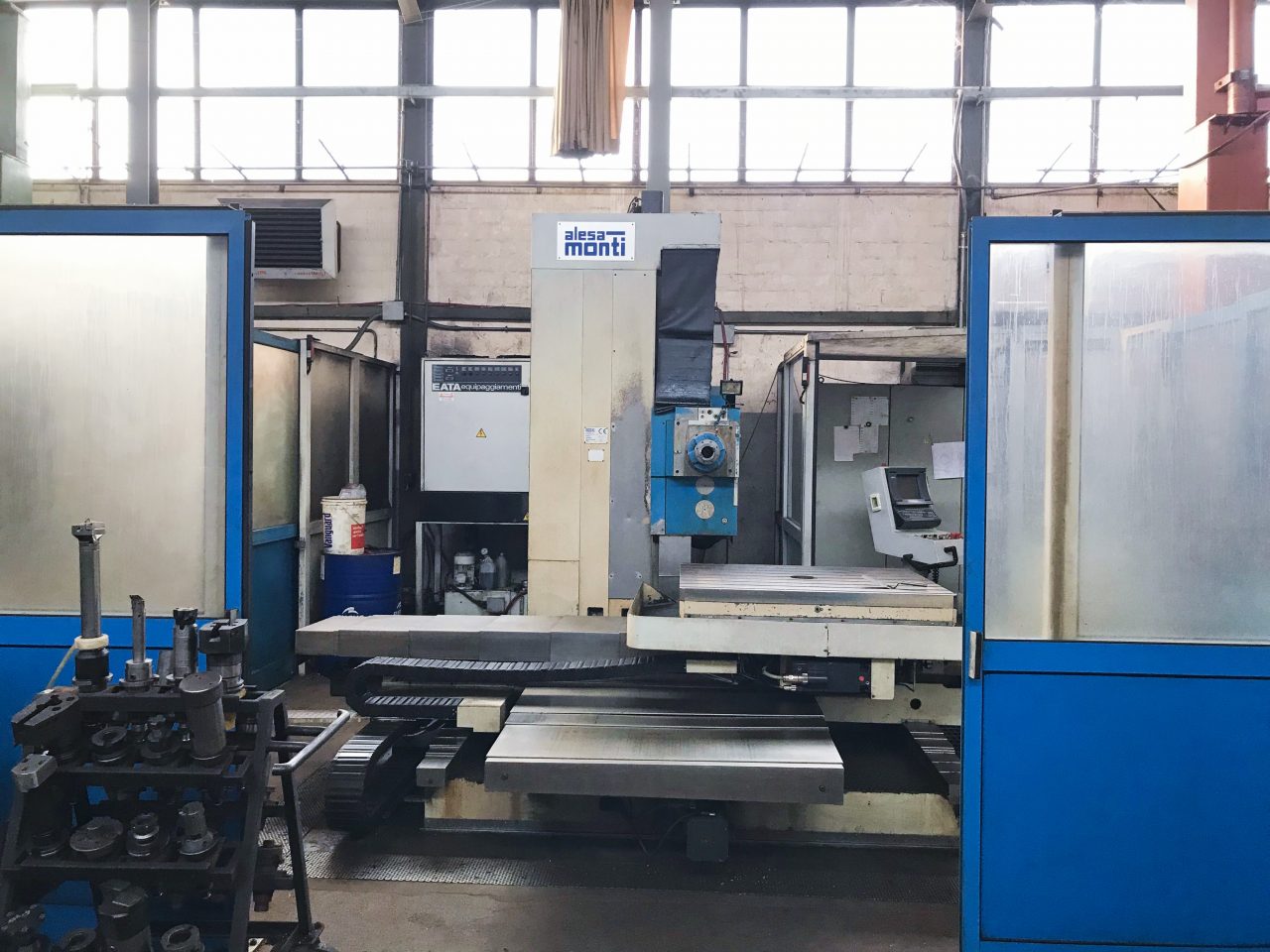

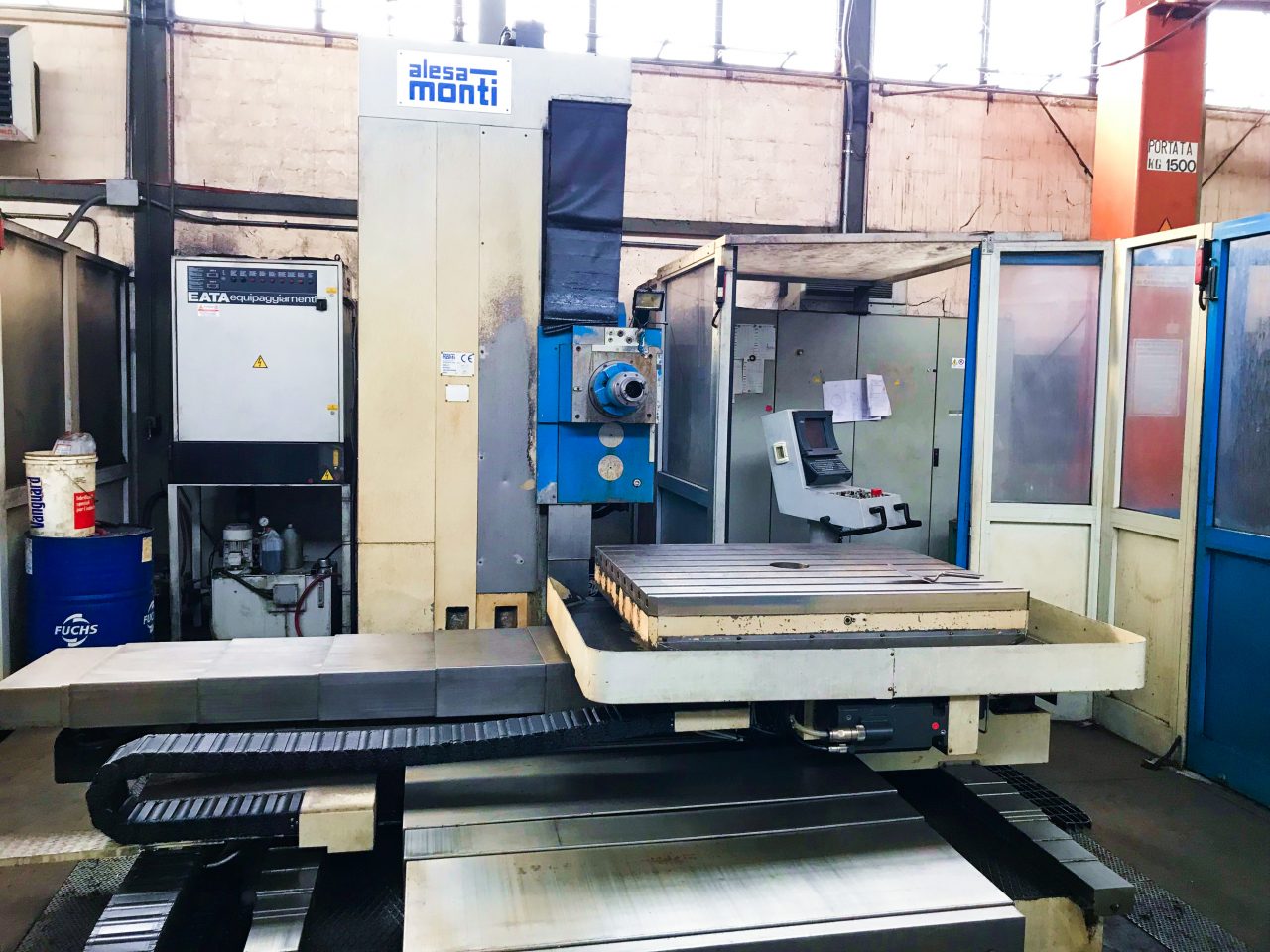

Boring Machine Alesamonti MCS100 – CNC Selca 30/45
Model: MCS100
CNC: Selca 30/45
5 axis
Year: 2001
- Boring Machine Alesamonti MCS100
- Brand: Alesamonti
- Model: MCS100
- CNC: Selca 30/45
- Year: 2001
- Weight: 14000 kg
- Fixed column with 5 axis
- TRAVELS
- X (table): 2000 – 2500 mm
- Y (headstock): 1500 – 1700 mm
- Z (table): 1000 – 1500 mm
- W (boring bar): 600 mm
- working feeds: 0 – 5000 mm/min
- rapid feeds: 20000 mm/min
- SPINDLE
- power: 33 kW (S6)
- taper: ISO50
- boring spindle diameter: 85, 100, 110 mm
- TABLE
- dimensions: 1100×1300 mm; 1300×1500 mm
- max. weight admitted: 4000 kg
